Pre-Configured MicroLED Systems.
Getting started with MicroLED has never been easier.
We designed a wide array of pre-configured microLED systems so you don’t have to.
Cost Effective
Competitive pricing for complete, well-matched systems.
Time Saving
No need to start from scratch; choose a ready-to-go system.
Vetted System Designs
Extensive research and expertise put into designing the pre-configured packages.
Indoor & Outdoor Solutions
Your single supplier for the category.
HDR10
HLG
4k
High Fidelity Processing
Our processor can output up to 4096 x 2160px at 10bit 60hz with HDR10 and HLG support.
12bit+
8k
120fps
Need Even More Fidelity?
Are you a person who wants more bits? More resolution? Faster Frame rates? Our Custom solution, is configurable with ultra-high bit rate processors carrying extreme pixel loads.
COB Display Technology
Our You Fit It solutions utilize the reliable “chip on board” (COB) display technology.
COB
HOB
SMD
+
Tech Out the Wazoo
While our standardized “Spec” line is limited to COB, we carry a full line of the top MicroLED display technologies.
Spec System Configurations
Over 50 pre-configured systems to choose from.
You Fit It Terms To Know
Practical Viewing Distance. This is the closest distance at which most users are comfortable viewing their screen.
Zero Sum Resolution. Also known as acuity distance, this is the distance at which pixels are no longer visible with 20/20 vision and any increase resolution is imperceptible. What is perceptible, however, is the amount of detail which is directly attributable to size, not resolution.
Chip On Board. This technology is a type of chipset that has become increasingly popular in the MicroLED category. It is highly reliable, proven, and carries the highest durability of any panel on the market today. We also have other technology types for more customized applications. Use our Justifyer tool to build a solution that fits your exact needs.
Processor Stack. As the total pixel count increases, so do the processing requirements. This may necessitate using multiple processors to meet the output required for your resolution
Spec Indoor Solutions
Pre-packaged MicroLED systems for indoor applications.
Spec Indoor Pixel Pitch Options:
PVD:
7ft
ZSR:
10ft
0.9mm
PVD:
9ft
ZSR:
14ft
1.2mm
PVD:
13ft
ZSR:
17ft
1.5mm
PVD:
15ft
ZSR:
19ft
1.8mm
Spec Indoor Size Options:
What is 16:9 Aspect Ratio?
16:9 Aspect Ratio (TV)
The 16:9 aspect ratio is a standard widescreen format that perfectly suits everyday home entertainment needs. It provides a balanced and familiar display for watching TV shows, streaming content, playing video games, and using computers. When you choose a microLED display with a 16:9 aspect ratio for your living room or media area, you get a versatile screen that seamlessly accommodates various types of content, delivering a captivating and immersive experience in the comfort of your home.
Spec Indoor 4x4
Diagonal:
108 in
Width:
94.5 in
Height:
53.1 in
Weight:
192 lbs
Ratio:
16:9
Nits:
600
Contrast:
8,000:1
Tech:
COB*
Max Input:
4k @ 60hz
Max Output:
10bit 60hz
| Pixel Pitch | ZSR (ft) | PVD (ft) | Resolution | Nits | Processor Stack | Average Power (W) | Max Power (W) |
|---|---|---|---|---|---|---|---|
| 0.9 | 10 | 7 | 2560 x 1440 | 600 | 1 | 356 | 1068 |
| 1.2 | 14 | 9 | 1920 x 1080 | 600 | 1 | 356 | 1068 |
| 1.5 | 17 | 13 | 1536 x 864 | 600 | 1 | 356 | 1068 |
| 1.8 | 19 | 15 | 1280 x 720 | 600 | 1 | 356 | 1068 |
* Want something other than COB? We have many tech options available. Contact us or use our Justifier tool and we will help you specify what’s right for you.
Spec Indoor 5x5
Diagonal:
136 in
Width:
118.1 in
Height:
66.4 in
Weight:
300 lbs
Ratio:
16:9
Nits:
600
Contrast:
8,000:1
Tech:
COB*
Max Input:
4k @ 60hz
Max Output:
10bit 60hz
| Pixel Pitch | ZSR (ft) | PVD (ft) | Resolution | Nits | Processor Stack | Average Power (W) | Max Power (W) |
|---|---|---|---|---|---|---|---|
| 0.9 | 10 | 7 | 3200 x 1800 | 600 | 2 | 557 | 1670 |
| 1.2 | 14 | 9 | 2400 x 1350 | 600 | 1 | 557 | 1670 |
| 1.5 | 17 | 13 | 1920 x 1080 | 600 | 1 | 557 | 1670 |
| 1.8 | 19 | 15 | 1600 x 900 | 600 | 1 | 557 | 1670 |
* Want something other than COB? We have many tech options available. Contact us or use our Justifier tool and we will help you specify what’s right for you.
Spec Indoor 6x6
Diagonal:
163 in
Width:
141.7 in
Height:
79.7 in
Weight:
432 lbs
Ratio:
16:9
Nits:
600
Contrast:
8,000:1
Tech:
COB*
Max Input:
4k @ 60hz
Max Output:
10bit 60hz
| Pixel Pitch | ZSR (ft) | PVD (ft) | Resolution | Nits | Processor Stack | Average Power (W) | Max Power (W) |
|---|---|---|---|---|---|---|---|
| 0.9 | 10 | 7 | 3840 x 2160 | 600 | 2 | 801 | 2404 |
| 1.2 | 14 | 9 | 2880 x 1620 | 600 | 2 | 801 | 2404 |
| 1.5 | 17 | 13 | 2304 x 1296 | 600 | 1 | 801 | 2404 |
| 1.8 | 19 | 15 | 1920 x 1080 | 600 | 1 | 801 | 2404 |
* Want something other than COB? We have many tech options available. Contact us or use our Justifier tool and we will help you specify what’s right for you.
Spec Indoor 7x7
Diagonal:
190 in
Width:
165.4 in
Height:
93 in
Weight:
588 lbs
Ratio:
16:9
Nits:
600
Contrast:
8,000:1
Tech:
COB*
Max Input:
4k @ 60hz
Max Output:
10bit 60hz
| Pixel Pitch | ZSR (ft) | PVD (ft) | Resolution | Nits | Processor Stack | Average Power (W) | Max Power (W) |
|---|---|---|---|---|---|---|---|
| 0.9 | 10 | 7 | 4480 x 2120 | 600 | 3 | 1092 | 3275 |
| 1.2 | 14 | 9 | 3360 x 1890 | 600 | 2 | 1092 | 3275 |
| 1.5 | 17 | 13 | 2688 x 1512 | 600 | 1 | 1092 | 3275 |
| 1.8 | 19 | 15 | 2240 x 1260 | 600 | 1 | 1092 | 3275 |
* Want something other than COB? We have many tech options available. Contact us or use our Justifier tool and we will help you specify what’s right for you.
Spec Indoor 8x8
Diagonal:
217 in
Width:
189 in
Height:
106.3 in
Weight:
768 lbs
Ratio:
16:9
Nits:
600
Contrast:
8,000:1
Tech:
COB*
Max Input:
4k @ 60hz
Max Output:
10bit 60hz
| Pixel Pitch | ZSR (ft) | PVD (ft) | Resolution | Nits | Processor Stack | Average Power (W) | Max Power (W) |
|---|---|---|---|---|---|---|---|
| 0.9 | 10 | 7 | 5120 x 2880 | 600 | 4 | 1426 | 4277 |
| 1.2 | 14 | 9 | 3840 x 2160 | 600 | 3 | 1426 | 4277 |
| 1.5 | 17 | 13 | 3072 x 1728 | 600 | 2 | 1426 | 4277 |
| 1.8 | 19 | 15 | 2560 x 1440 | 600 | 1 | 1426 | 4277 |
* Want something other than COB? We have many tech options available. Contact us or use our Justifier tool and we will help you specify what’s right for you.
Spec Indoor 9x9
Diagonal:
244 in
Width:
212.6 in
Height:
119.6 in
Weight:
972 lbs
Ratio:
16:9
Nits:
600
Contrast:
8,000:1
Tech:
COB*
Max Input:
4k @ 60hz
Max Output:
10bit 60hz
| Pixel Pitch | ZSR (ft) | PVD (ft) | Resolution | Nits | Processor Stack | Average Power (W) | Max Power (W) |
|---|---|---|---|---|---|---|---|
| 0.9 | 10 | 7 | 5760 x 3240 | 600 | 5 | 1804 | 5413 |
| 1.2 | 14 | 9 | 4320 x 2430 | 600 | 3 | 1804 | 5413 |
| 1.5 | 17 | 13 | 3456 x 1944 | 600 | 2 | 1804 | 5413 |
| 1.8 | 19 | 15 | 2880 x 1620 | 600 | 2 | 1804 | 5413 |
* Want something other than COB? We have many tech options available. Contact us or use our Justifier tool and we will help you specify what’s right for you.
Spec Indoor 10x10
Diagonal:
271 in
Width:
236.2 in
Height:
132.9 in
Weight:
1200 lbs
Ratio:
16:9
Nits:
600
Contrast:
8,000:1
Tech:
COB*
Max Input:
4k @ 60hz
Max Output:
10bit 60hz
| Pixel Pitch | ZSR (ft) | PVD (ft) | Resolution | Nits | Processor Stack | Average Power (W) | Max Power (W) |
|---|---|---|---|---|---|---|---|
| 0.9 | 10 | 7 | 6400 x 3600 | 600 | 5 | 4200 | 13500 |
| 1.2 | 14 | 9 | 4800 x 2700 | 800 | 4 | 4700 | 14800 |
| 1.5 | 17 | 13 | 3840 x 2160 | 800 | 2 | 4800 | 15000 |
| 1.8 | 19 | 15 | 3200 x 1800 | 800 | 2 | 4900 | 15200 |
* Want something other than COB? We have many tech options available. Contact us or use our Justifier tool and we will help you specify what’s right for you.
Spec Indoor 12x12
Diagonal:
325 in
Width:
283.5 in
Height:
159.4 in
Weight:
1728 lbs
Ratio:
16:9
Nits:
600
Contrast:
8,000:1
Tech:
COB*
Max Input:
4k @ 60hz
Max Output:
10bit 60hz
| Pixel Pitch | ZSR (ft) | PVD (ft) | Resolution | Nits | Processor Stack | Average Power (W) | Max Power (W) |
|---|---|---|---|---|---|---|---|
| 0.9 | 10 | 7 | 7680 x 4320 | 600 | 8 | 6048 | 19440 |
| 1.2 | 14 | 9 | 5760 x 3240 | 800 | 5 | 6768 | 21312 |
| 1.5 | 17 | 13 | 4608 x 2592 | 800 | 3 | 6912 | 21600 |
| 1.8 | 19 | 15 | 3840 x 2160 | 800 | 2 | 7056 | 21888 |
* Want something other than COB? We have many tech options available. Contact us or use our Justifier tool and we will help you specify what’s right for you.
What is 2.40:1 Aspect Ratio?
2.40:1 Aspect Ratio (Cinemascope)
The 2.40:1 aspect ratio, also known as Cinemascope, brings the magic of the big screen right into your home theater. With its wider format, microLED displays in 2.40:1 aspect ratio offer an authentic cinematic experience for watching movies. This format eliminates distracting black bars on top and bottom (letterboxing) commonly seen in regular TVs, ensuring you enjoy your favorite films in their original widescreen glory. A microLED display with 2.40:1 aspect ratio is perfect for film enthusiasts who want to recreate the magic of the cinema in their home theater setup.
Spec Indoor 4x3
Diagonal:
103 in
Width:
94.5 in
Height:
39.9 in
Weight:
228 lbs
Ratio:
2.40:1
Nits:
600
Contrast:
10,000:1
Tech:
COB*
Max Input:
4k @ 60hz
Max Output:
10bit 60hz
| Pixel Pitch | ZSR (ft) | PVD (ft) | Resolution | Nits | Processor Stack | Average Power (W) | Max Power (W) |
|---|---|---|---|---|---|---|---|
| 0.9 | 10 | 7 | 2560 x 1080 | 600 | 1 | 268 | 803 |
| 1.2 | 14 | 9 | 1920 x 810 | 600 | 1 | 268 | 803 |
| 1.5 | 17 | 13 | 1536 x 648 | 600 | 1 | 268 | 803 |
| 1.8 | 19 | 15 | 1280 x 540 | 600 | 1 | 268 | 803 |
* Want something other than COB? We have many tech options available. Contact us or use our Justifier tool and we will help you specify what’s right for you.
Spec Indoor 7x5
Diagonal:
178 in
Width:
165.4 in
Height:
66.4 in
Weight:
665 lbs
Ratio:
2.40:1
Nits:
600
Contrast:
10,000:1
Tech:
COB*
Max Input:
4k @ 60hz
Max Output:
10bit 60hz
| Pixel Pitch | ZSR (ft) | PVD (ft) | Resolution | Nits | Processor Stack | Average Power (W) | Max Power (W) |
|---|---|---|---|---|---|---|---|
| 0.9 | 10 | 7 | 4480 x 1800 | 600 | 2 | 779 | 2338 |
| 1.2 | 14 | 9 | 3360 x 1350 | 600 | 2 | 779 | 2338 |
| 1.5 | 17 | 13 | 2688 x 1080 | 600 | 1 | 779 | 2338 |
| 1.8 | 19 | 15 | 2240 x 900 | 600 | 1 | 779 | 2338 |
* Want something other than COB? We have many tech options available. Contact us or use our Justifier tool and we will help you specify what’s right for you.
Spec Indoor 8x6
Diagonal:
205 in
Width:
189 in
Height:
79.7 in
Weight:
912 lbs
Ratio:
2.40:1
Nits:
600
Contrast:
10,000:1
Tech:
COB*
Max Input:
4k @ 60hz
Max Output:
10bit 60hz
| Pixel Pitch | ZSR (ft) | PVD (ft) | Resolution | Nits | Processor Stack | Average Power (W) | Max Power (W) |
|---|---|---|---|---|---|---|---|
| 0.9 | 10 | 7 | 5120 x 2160 | 600 | 3 | 1069 | 3207 |
| 1.2 | 14 | 9 | 3840 x 1620 | 600 | 2 | 1069 | 3207 |
| 1.5 | 17 | 13 | 3072 x 1296 | 600 | 1 | 1069 | 3207 |
| 1.8 | 19 | 15 | 2560 x 1080 | 600 | 1 | 1069 | 3207 |
* Want something other than COB? We have many tech options available. Contact us or use our Justifier tool and we will help you specify what’s right for you.
Spec Indoor 11x8
Diagonal:
281 in
Width:
259.8 in
Height:
106.3 in
Weight:
1672 lbs
Ratio:
2.40:1
Nits:
600
Contrast:
10,000:1
Tech:
COB*
Max Input:
4k @ 60hz
Max Output:
10bit 60hz
| Pixel Pitch | ZSR (ft) | PVD (ft) | Resolution | Nits | Processor Stack | Average Power (W) | Max Power (W) |
|---|---|---|---|---|---|---|---|
| 0.9 | 10 | 7 | 7040 x 2880 | 600 | 5 | 1960 | 5880 |
| 1.2 | 14 | 9 | 5280 x 2160 | 600 | 3 | 1960 | 5880 |
| 1.5 | 17 | 13 | 4224 x 1728 | 600 | 2 | 1960 | 5880 |
| 1.8 | 19 | 15 | 3520 x 1440 | 600 | 2 | 1960 | 5880 |
* Want something other than COB? We have many tech options available. Contact us or use our Justifier tool and we will help you specify what’s right for you.
What is 24:9 Aspect Ratio?
24:9 Aspect Ratio (also 2.67 or 8:3)
For those who desire an extraordinary and immersive viewing experience, the 24:9 aspect ratio delivers an ultra-wide screen that expands your visual horizons. This ratio performs well with seamless widescreen content, and is perfectly suited for a standard 3-layer presets. At 1.5x the width of a standard TV (16:9), it can stack two smaller 16:9 images on either side while maintaining one large 16:9 image on the opposite side.
Spec Indoor 6x4
Diagonal:
151 in
Width:
141.7 in
Height:
53.1 in
Weight:
304 lbs
Ratio:
24:9
Nits:
600
Contrast:
10,000:1
Tech:
COB*
Max Input:
4k @ 60hz
Max Output:
10bit 60hz
| Pixel Pitch | ZSR (ft) | PVD (ft) | Resolution | Nits | Processor Stack | Average Power (W) | Max Power (W) |
|---|---|---|---|---|---|---|---|
| 0.9 | 10 | 7 | 5120 x 2160 | 600 | 3 | 1069 | 3207 |
| 1.2 | 14 | 9 | 3840 x 1620 | 600 | 2 | 1069 | 3207 |
| 1.5 | 17 | 13 | 3072 x 1296 | 600 | 1 | 1069 | 3207 |
| 1.8 | 19 | 15 | 2560 x 1080 | 600 | 1 | 1069 | 3207 |
* Want something other than COB? We have many tech options available. Contact us or use our Justifier tool and we will help you specify what’s right for you.
Spec Indoor 9x6
Diagonal:
227 in
Width:
212.6 in
Height:
79.7 in
Weight:
612 lbs
Ratio:
24:9
Nits:
600
Contrast:
10,000:1
Tech:
COB*
Max Input:
4k @ 60hz
Max Output:
10bit 60hz
| Pixel Pitch | ZSR (ft) | PVD (ft) | Resolution | Nits | Processor Stack | Average Power (W) | Max Power (W) |
|---|---|---|---|---|---|---|---|
| 0.9 | 10 | 7 | 7040 x 2880 | 600 | 5 | 1960 | 5880 |
| 1.2 | 14 | 9 | 5280 x 2160 | 600 | 3 | 1960 | 5880 |
| 1.5 | 17 | 13 | 4224 x 1728 | 600 | 2 | 1960 | 5880 |
| 1.8 | 19 | 15 | 3520 x 1440 | 600 | 2 | 1960 | 5880 |
* Want something other than COB? We have many tech options available. Contact us or use our Justifier tool and we will help you specify what’s right for you.
Spec Outdoor Solutions
Pre-packaged MicroLED systems for outdoor applications.
Spec Outdoor Pixel Pitch:
PVD:
17ft
ZSR:
13ft
1.5mm
PVD:
19ft
ZSR:
15ft
1.8mm
PVD:
28ft
ZSR:
23ft
2.5mm
Spec Outdoor Size Options:
What is 16:9 Aspect Ratio?
16:9 Aspect Ratio (TV)
The 16:9 aspect ratio is a standard widescreen format that perfectly suits everyday home entertainment needs. It provides a balanced and familiar display for watching TV shows, streaming content, playing video games, and using computers. When you choose a microLED display with a 16:9 aspect ratio for your living room or media area, you get a versatile screen that seamlessly accommodates various types of content, delivering a captivating and immersive experience in the comfort of your home.
You Fit It Outdoor 6x3
Diagonal:
130 in
Width:
113.4 in
Height:
63.8 in
Weight:
432 lbs
Ratio:
16:9
Nits:
4,000
Contrast:
12,000:1
Tech:
COB
Max Input:
4k @ 60hz
Max Output:
10bit 60hz
| Pixel Pitch | ZSR (ft) | PVD (ft) | Resolution | Nits | Processor Stack | Average Power (W) | Max Power (W) |
|---|---|---|---|---|---|---|---|
| 1.5 | 17 | 13 | 1920 x 1080 | 4000 | 1 | 1242 | 3564 |
| 1.8 | 19 | 15 | 1536 x 864 | 4000 | 1 | 1188 | 3528 |
| 2.5 | 28 | 23 | 1152 x 648 | 4000 | 1 | 1134 | 3456 |
* Want something other than COB? We have many tech options available. Contact us or use our Justifier tool and we will help you specify what’s right for you.
You Fit It Outdoor 8x4
Diagonal:
173 in
Width:
151.2 in
Height:
85 in
Weight:
768 lbs
Ratio:
16:9
Nits:
4,000
Contrast:
12,000:1
Tech:
COB
Max Input:
4k @ 60hz
Max Output:
10bit 60hz
| Pixel Pitch | ZSR (ft) | PVD (ft) | Resolution | Nits | Processor Stack | Average Power (W) | Max Power (W) |
|---|---|---|---|---|---|---|---|
| 1.5 | 17 | 13 | 2560 x 1440 | 4000 | 1 | 2208 | 6336 |
| 1.8 | 19 | 15 | 2048 x 1152 | 4000 | 1 | 2112 | 6272 |
| 2.5 | 28 | 23 | 1536 x 864 | 4000 | 1 | 2016 | 6144 |
* Want something other than COB? We have many tech options available. Contact us or use our Justifier tool and we will help you specify what’s right for you.
You Fit It Outdoor 10x5
Diagonal:
217 in
Width:
189 in
Height:
106.3 in
Weight:
1200 lbs
Ratio:
16:9
Nits:
4,000
Contrast:
12,000:1
Tech:
COB
Max Input:
4k @ 60hz
Max Output:
10bit 60hz
| Pixel Pitch | ZSR (ft) | PVD (ft) | Resolution | Nits | Processor Stack | Average Power (W) | Max Power (W) |
|---|---|---|---|---|---|---|---|
| 1.5 | 17 | 13 | 3200 x 1800 | 4000 | 2 | 3450 | 9900 |
| 1.8 | 19 | 15 | 2560 x 1440 | 4000 | 1 | 3300 | 9800 |
| 2.5 | 28 | 23 | 1920 x 1080 | 4000 | 1 | 3150 | 9600 |
* Want something other than COB? We have many tech options available. Contact us or use our Justifier tool and we will help you specify what’s right for you.
You Fit It Outdoor 12x6
Diagonal:
260 in
Width:
226.8 in
Height:
127.6 in
Weight:
1728 lbs
Ratio:
16:9
Nits:
4,000
Contrast:
12,000:1
Tech:
COB
Max Input:
4k @ 60hz
Max Output:
10bit 60hz
| Pixel Pitch | ZSR (ft) | PVD (ft) | Resolution | Nits | Processor Stack | Average Power (W) | Max Power (W) |
|---|---|---|---|---|---|---|---|
| 1.5 | 17 | 13 | 3840 x 2160 | 4000 | 2 | 4968 | 14256 |
| 1.8 | 19 | 15 | 3072 x 1728 | 4000 | 2 | 4752 | 14112 |
| 2.5 | 28 | 23 | 2304 x 1296 | 4000 | 1 | 4536 | 13824 |
* Want something other than COB? We have many tech options available. Contact us or use our Justifier tool and we will help you specify what’s right for you.
What is 2.40:1 Aspect Ratio?
2.40:1 Aspect Ratio (Cinemascope)
The 2.40:1 aspect ratio, also known as Cinemascope, brings the magic of the big screen right into your home theater. With its wider format, microLED displays in 2.40:1 aspect ratio offer an authentic cinematic experience for watching movies. This format eliminates distracting black bars on top and bottom (letterboxing) commonly seen in regular TVs, ensuring you enjoy your favorite films in their original widescreen glory. A microLED display with 2.40:1 aspect ratio is perfect for film enthusiasts who want to recreate the magic of the cinema in their home theater setup.
Spec Outdoor 8x3
Diagonal:
164 in
Width:
151.2 in
Height:
63.8 in
Weight:
576 lbs
Ratio:
2.40:1
Nits:
4,000
Contrast:
12,000:1
Tech:
COB*
Max Input:
4k @ 60hz
Max Output:
10bit 60hz
| Pixel Pitch | ZSR (ft) | PVD (ft) | Resolution | Nits | Processor Stack | Average Power (W) | Max Power (W) |
|---|---|---|---|---|---|---|---|
| 1.5 | 17 | 13 | 2560 x 1080 | 4000 | 1 | 1656 | 4752 |
| 1.8 | 19 | 15 | 2048 x 864 | 4000 | 1 | 1584 | 4704 |
| 2.5 | 28 | 23 | 1536 x 648 | 4000 | 1 | 1512 | 4608 |
* Want something other than COB? We have many tech options available. Contact us or use our Justifier tool and we will help you specify what’s right for you.
Spec Outdoor 11x4
Diagonal:
225 in
Width:
207.9 in
Height:
85 in
Weight:
1056 lbs
Ratio:
2.40:1
Nits:
4,000
Contrast:
12,000:1
Tech:
COB*
Max Input:
4k @ 60hz
Max Output:
10bit 60hz
| Pixel Pitch | ZSR (ft) | PVD (ft) | Resolution | Nits | Processor Stack | Average Power (W) | Max Power (W) |
|---|---|---|---|---|---|---|---|
| 1.5 | 17 | 13 | 3520 x 1440 | 4000 | 2 | 3036 | 8712 |
| 1.8 | 19 | 15 | 2816 x 1152 | 4000 | 1 | 2904 | 8624 |
| 2.5 | 28 | 23 | 2112 x 864 | 4000 | 1 | 2772 | 8448 |
* Want something other than COB? We have many tech options available. Contact us or use our Justifier tool and we will help you specify what’s right for you.
Spec Outdoor 14x5
Diagonal:
285 in
Width:
264.6 in
Height:
106.3 in
Weight:
1680 lbs
Ratio:
2.40:1
Nits:
4,000
Contrast:
12,000:1
Tech:
COB*
Max Input:
4k @ 60hz
Max Output:
10bit 60hz
| Pixel Pitch | ZSR (ft) | PVD (ft) | Resolution | Nits | Processor Stack | Average Power (W) | Max Power (W) |
|---|---|---|---|---|---|---|---|
| 1.5 | 17 | 13 | 4480 x 1800 | 4000 | 2 | 4830 | 13860 |
| 1.8 | 19 | 15 | 3584 x 1440 | 4000 | 2 | 4620 | 13720 |
| 2.5 | 28 | 23 | 2688 x 1080 | 4000 | 1 | 4410 | 13440 |
* Want something other than COB? We have many tech options available. Contact us or use our Justifier tool and we will help you specify what’s right for you.
What is 24:9 Aspect Ratio?
24:9 Aspect Ratio (also 2.67 or 8:3)
For those who desire an extraordinary and immersive viewing experience, the 24:9 aspect ratio delivers an ultra-wide screen that expands your visual horizons. This ratio performs well with seamless widescreen content, and is perfectly suited for a standard 3-layer presets. At 1.5x the width of a standard TV (16:9), it can stack two smaller 16:9 images on either side while maintaining one large 16:9 image on the opposite side.
Spec Outdoor 6x2
Diagonal:
121 in
Width:
113.4 in
Height:
42.5 in
Weight:
268 lbs
Ratio:
24:9
Nits:
4,000
Contrast:
12,000:1
Tech:
COB*
Max Input:
4k @ 60hz
Max Output:
10bit 60hz
| Pixel Pitch | ZSR (ft) | PVD (ft) | Resolution | Nits | Processor Stack | Average Power (W) | Max Power (W) |
|---|---|---|---|---|---|---|---|
| 1.5 | 17 | 13 | 1920 x 720 | 4000 | 1 | 828 | 2376 |
| 1.8 | 19 | 15 | 1536 x 576 | 4000 | 1 | 792 | 2352 |
| 2.5 | 28 | 23 | 1152 x 432 | 4000 | 1 | 756 | 2304 |
* Want something other than COB? We have many tech options available. Contact us or use our Justifier tool and we will help you specify what’s right for you.
Spec Outdoor 9x3
Diagonal:
182 in
Width:
170.1 in
Height:
63.8 in
Weight:
648 lbs
Ratio:
24:9
Nits:
4,000
Contrast:
12,000:1
Tech:
COB*
Max Input:
4k @ 60hz
Max Output:
10bit 60hz
| Pixel Pitch | ZSR (ft) | PVD (ft) | Resolution | Nits | Processor Stack | Average Power (W) | Max Power (W) |
|---|---|---|---|---|---|---|---|
| 1.5 | 17 | 13 | 2880 x 1080 | 4000 | 1 | 1863 | 5346 |
| 1.8 | 19 | 15 | 2304 x 864 | 4000 | 1 | 1782 | 5292 |
| 2.5 | 28 | 23 | 1728 x 648 | 4000 | 1 | 1701 | 5184 |
* Want something other than COB? We have many tech options available. Contact us or use our Justifier tool and we will help you specify what’s right for you.
Just Think About...
The creative possibilities with MicroLED systems.

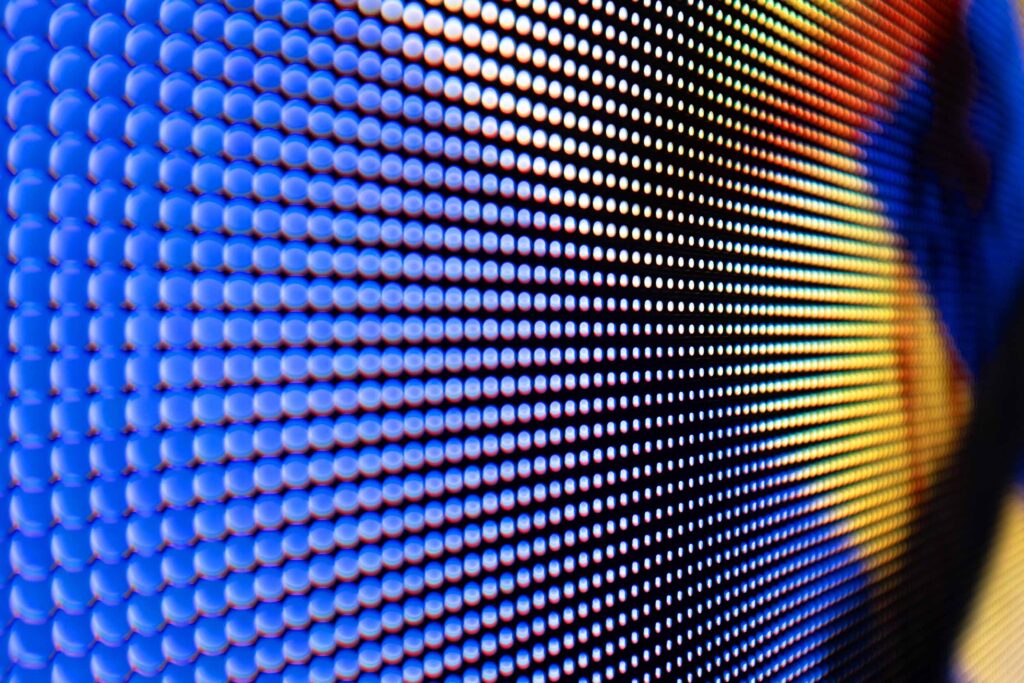

MicroLED displays are comprised of many small “tiles” stacked together to form one large seamless surface. Because of this, they are able to be configured in many different sizes and shapes. Even inside of our standardized “You Fit It” solutions, you can have a lot of fun.

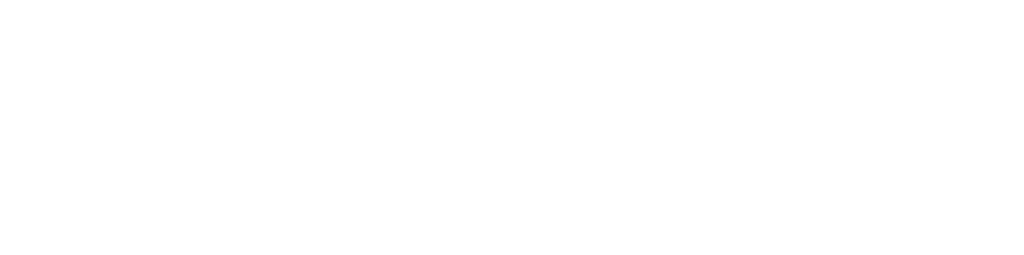

Combine two 16:9 screens to form…

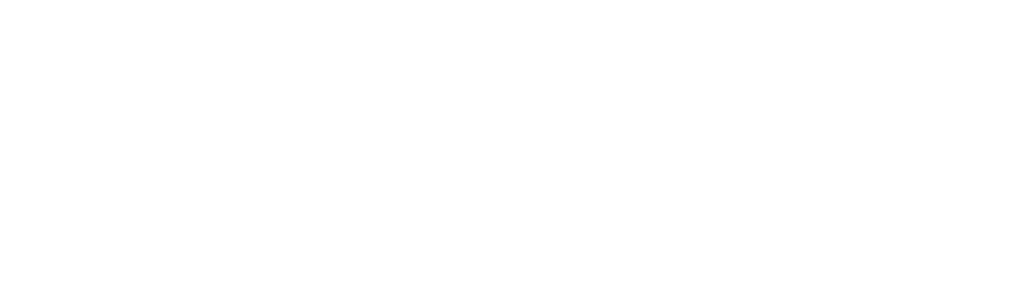

One seamless 32:9 screen.
Proposed Uses
The 32:9 ratio screen is great for a home office where a user may combine live news feeds, stock tickers, and online meetings onto a single screen.
The bedroom application for a 32:9 screen works great for “his and hers” programming. Not only can each user watch what they want (he can watch sports, while she watches a drama), but the system can also layer security feeds, or doorbell cameras without disrupting the other content.
Gaming rooms are a great use case for 32:9 screens. LAN parties or eSports events are perfect for multiple users to each have their own large screen on one seamless surface.
